MoLab Concept and Architecture

Folder Structure

Each component of MoLab is located in a separate directory outlined below. The Justfile in the root directory provides a way to automate build and test tasks across components. The terms backend and gateway are used interchangeably in the context of MoLab.

MoLab/
├── backend/            # FastAPI endpoint for inference
├── models/condmdi/     # CondMDI fork with new features and improvements
│   └── README.md       # CondMDI model description and usage instructions
├── frontend/           # Godot User Interface for MoLab Sequencer
├── dcc/                # DCC plugins (Maya, Blender, etc.)
├── docs/               # Documentation for the project
├── Justfile            # Automate build/test tasks across components
└── README.md           # Project description and setup instructions

Overview

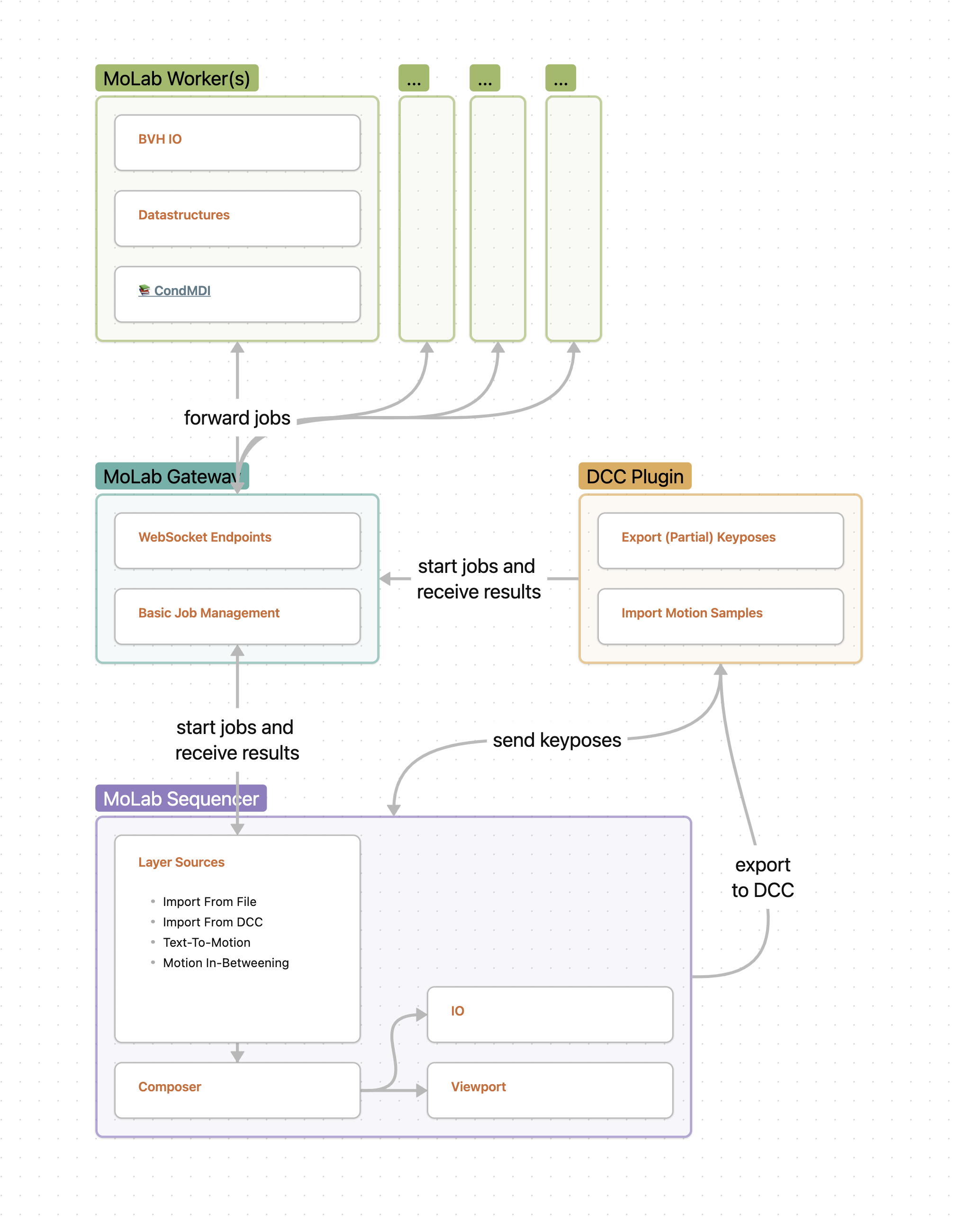

Conceptually, MoLab consists of these four components: the MoLab Sequencer, Gateway, Worker and DCC Plugin.

The Worker contains the machine learning model and is responsible for generating motion sequences based on text descriptions and the Gateway is the interface between the worker and the client. It is responsible for distributing the inference requests to a free worker instance and returning the results.

Currently, there are two available clients: the DCC Plugin and the MoLab Sequencer. Both allow the user to send inference requests and receive the generated motion sequences but have different use-cases. The former is a plugin for the 3D software Autodesk Maya and allows a direct integration into an animators workflow. The latter is a standalone application aimed at higher-level use-cases like pre-production and provides a timeline-based user interface for editing and composing motion sequences.
